ermeable asphalt pavement or porus friction course is commonly knews as porous asphalt. The porous pavement is commonly used in Europe and Japan. The pavement cousist in a porous overlay and then to drain on he edges to the pavement (Michael. E Barret. Ph.D). The lot deposit of Quarsite Dolomite Stone in Indonesia was still not be exploited better. Among the exiting utilization of it most of it was exploited for traditional needs fireplace material, some last rasearch in the field of road construction showed that Quarsite Dolomite Stone was powerfull enough when mixtured material for pavemen stabilization. Quarsite Dolomite Stone is local material from sea location in the island of banggai half Sulawesi Indonesia. Its was kwarsit Dolomitan material Celebes (Car Donald, 1985). This Experimental be done for mesuring propertis permeability asphalt pavement with using Quarsite Dolomite Stone as Local material who was come from sea location at the Banggai Island half Celebes Indonesia with used Rice Hash as Filler.

As course agregate on the surface layer Road Pavement. Capasity drain porous Asphalt were Author: Doctor Civil Enginering from Hasanuddin University, in duty Atma Jaya University Makassar. e-mail: [email protected].

connecting correlasion with spacing hight and small porousity in structure Asphalt. Stability and Durability and Hydrolic conductivity its must be hight test than 20% (Ruz. et. al, 1990 ). Asphalt porous is open graded course Aggregate. Porousity asphalt porous (10%-15%) the structure made drain for flow water (Nur Ali, et al. 2005).

Aggregate was specimen mineral who was done for mixture road konstruktion in the asphalt pavement it's mush be 90%-95% for the total weight strukture or 77%-85% for all volume (Alkin, et. al 1997).

Clasification agregate be measured by spacing at all : course aggregate it must be lost for filter No.8 it is higher than 2,36 mm.

Two different test, the indirect tensile test (IDT) and the semi-circular bending test (SCB) were performed on a Permeable asphalt pavement. The mixture was a 10 mm nominal maximum size produced with limestone and marly limestone, calcarenite, and fine and coarse sand. It has 6.5% (±0.5%) air void and 5.4% design asphalt content, produced with 60/70 PEN virgin bitumen. Specimens were compacted using a Superpave Gyratory compactor at N = 109 revolutions to produce a 6500 g, 150 mm diameter Gyratory-compacted specimen. Specimens 150 mm diameter by 25 mm thick were used to perform Superpave IDT test with the system developed by Roque and Buttlar [9,10]. Some of these thin specimens were sliced to obtain 75 mm height semi circular specimens in order to conduct SCB test.

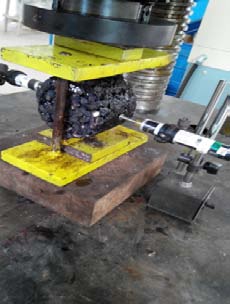

The tests were performed on three replicates at 10 o C using an MTS closed-loop servo-hydraulic loading system. The experimental set-up of each test is shown in Fig. 1.

The IDT loads monotoniealiy a 152 mm diameter circular specimen to failure applying a constant stroke of 0.084 mm/s. Two strain gauges with a length of 38.1 mm are placed at the centre of the specimen to measure vertical and horizontal deformations during loading. The horizontal stress occurring at the centre of the specimen is computed using the following IDT plane stress equation, according to the superpave indirect tension test procedure [9,10]: ?h= 2P/?Dt where: ?h tensile stress at the centre of the specimens, P load of the specimen, D diameter of the specimen, t thickness of the specimen.

In addition, the procedure developed by Roque and Buttlar [9,10] was used to calculate horizontal and vertical strains at the center of the specimen from horizontal and vertical train gauge measurements.

Permeable asphalt pavement was produced with used Quarsite Dolomite Stone as course aggregate. The Quarsite Dolomite Stone broked in the spacing 3/8" ½"-¾" with the BNA Blend Pertamina penetration 60/70. Briket at the Bitumen be done as the standard variation asphalt 3%, 3,5%, 4%, and 5% for testing experimental Indirect Tensile Strength (ITS) and Catambro Lost. We was controlling testing for composition asphalt permeable pavement with Standar National Indonesia (SNI) and American Association for Testing and Material (ASTM), Permeability and Marshal Test with asphalt variation 4-7% integral spacing 1% who use variation open gradation. Asphalt optimum standar is 4% be used to controlling variation asphalt. For optimum asphalt test be use variation asphalt 3% -5% with spacing 5%.

For open gradation we use lost aggregate ¾", ½" and lost filter by comparative 50 : 50. Fine aggregate we use filter number 4, finally number 200, we used 10%. BNA Blend Pertamina we use all variation asphalt category: 3%, 3.5%, 4%, 4.5% and 5%. Test Indirect Tensil Strength (ITS) be controlling by ASTM D6931-07.

Mix design permeable asphalt pavement the used composition open graded sistem. Who was Mix Trial Gradation lost of material ¾", 1/2 " be stoped filter ½" and lost of material ½" be stoped filter 3/8" with composition comparative 50-50 to course aggregate. The used fine aggregate lost filter number 4, and stoped filter number 200 all of 10% for mould capacity. Asphalt Blend Pertamina the use variation standard 3%, 3.5%, 4%, 4.5% and 5%. Briket make in for 10 cm and depth + 6.5cm and Briket make in 40x40 cm, depth + 6.5cm. 1. Indirect tensile strength 0,1140 MPa for total load 125 Kgf, for the quality asphalt 3% R maks 0,0180. Indirect tensile strength 0, 2483 MPa for total load 275 Kgf, for the quality asphalt 3.5% R maks 0,0234. Indirect tensile strength 0, 3574 MPa for total load 400 Kgf, for the quality asphalt 4% R maks 0, 0283. Indirect tensile strength 0, 2927 MPa for total load 325 Kgf, for the quality asphalt 4.5% R maks 0,0253. Indirect tensile strength 0,2346 MPa for total load 250 Kgf, for the quality asphalt 5% R maks 0,0225.
